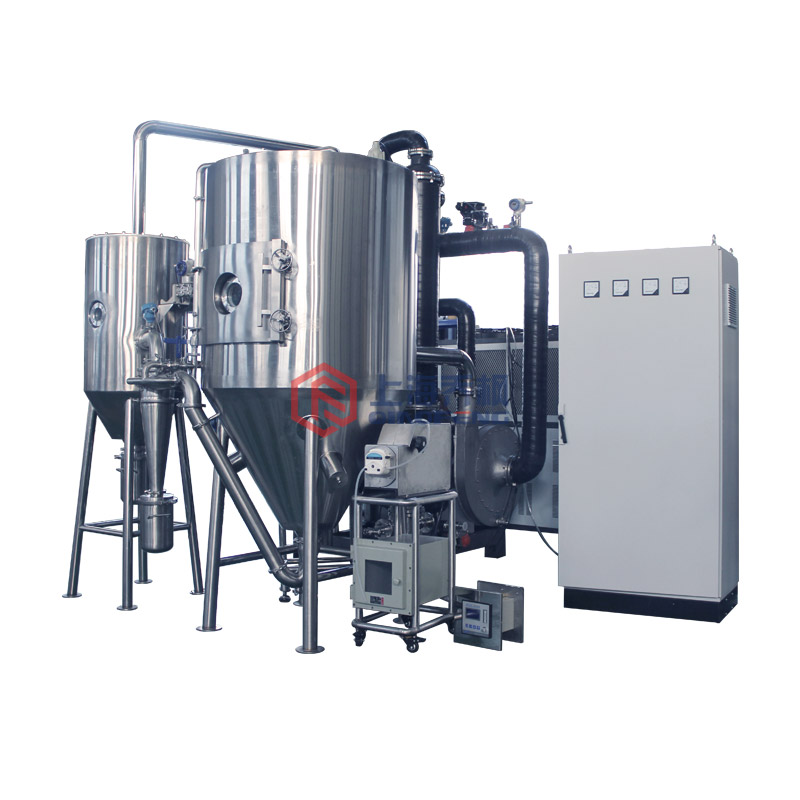

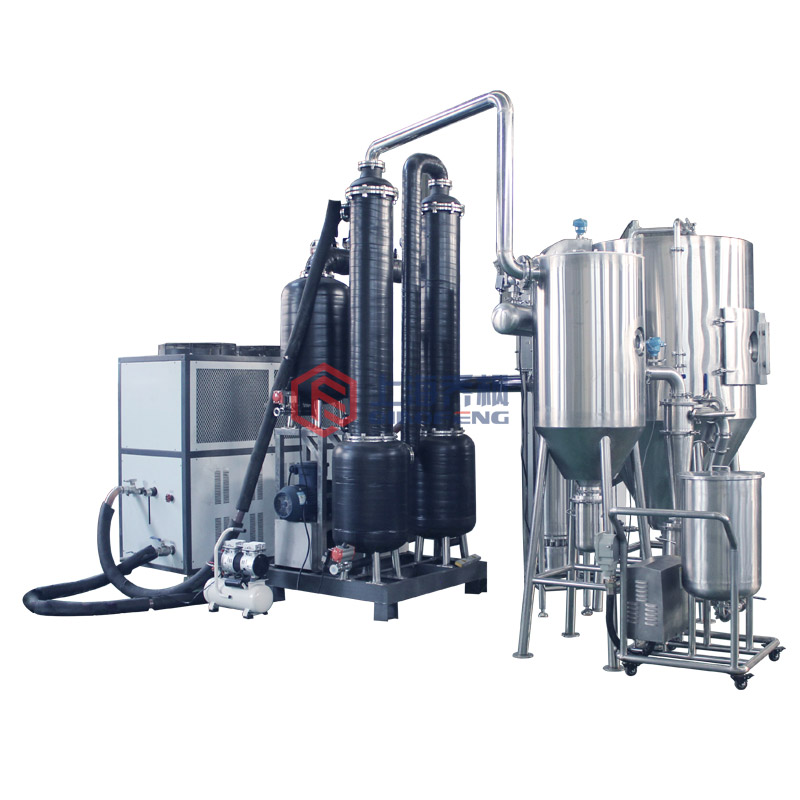

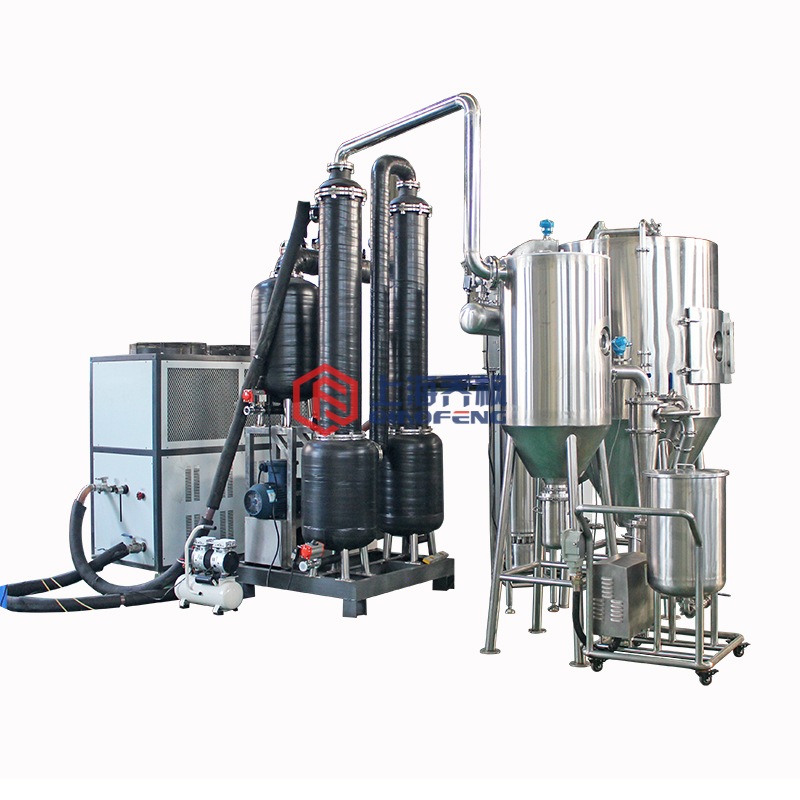

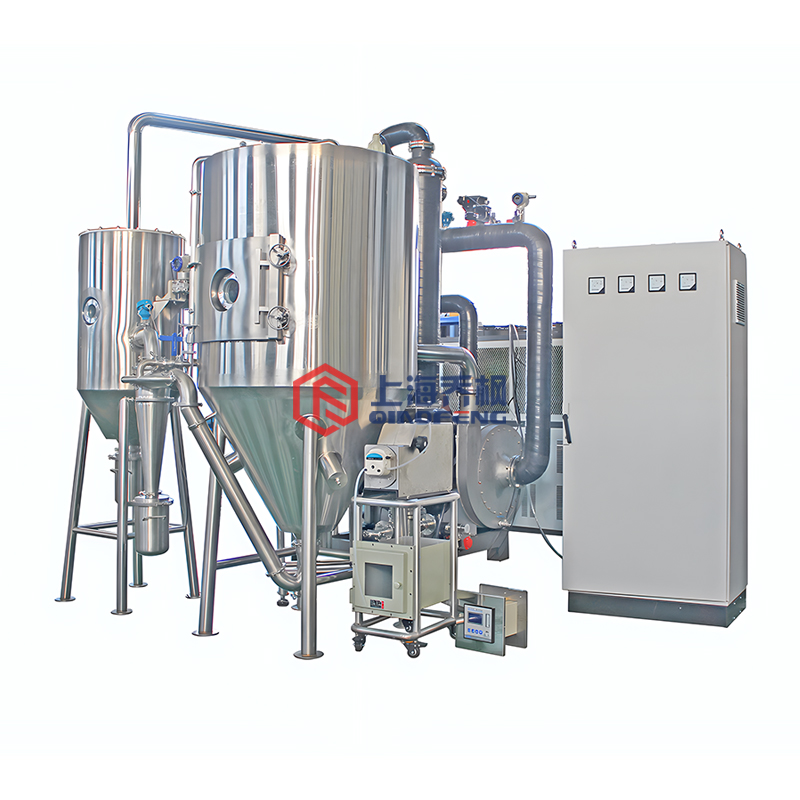

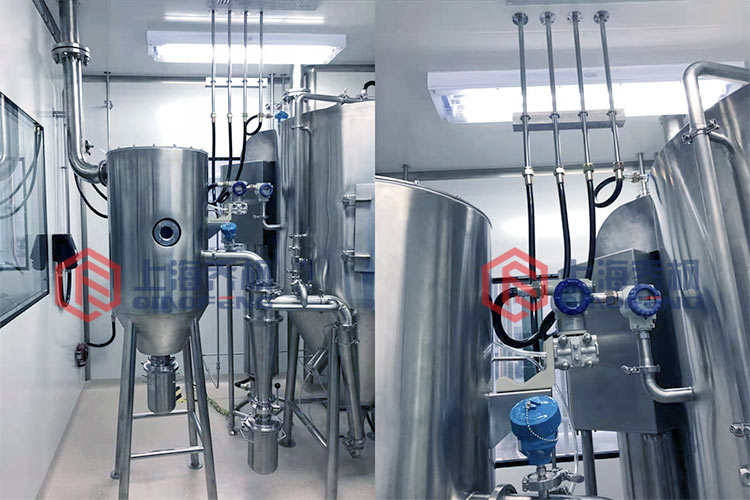

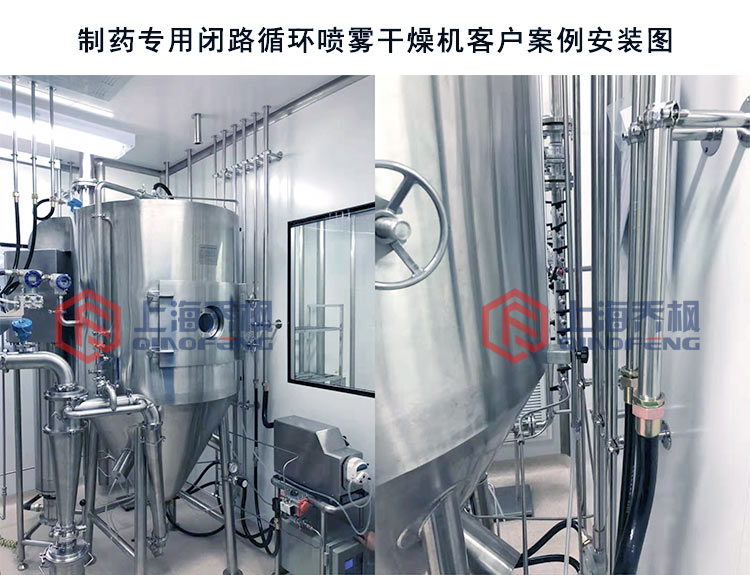

The closed cycle low-temperature drying machine
Device name: Closed circulation low temperature spray dryer
Equipment type: qfn - bl - d1
Equipment specifications: 0.8Kg/h (support customized)
Test machine: Support test making experiment
Scope of application: Non-oxidized ceramics, superhard alloys, high-efficiency battery materials, seasonings, health foods, medicines, vitamins, organic drugs, synthetic resins, waxes and so on.
Application scenario: Scientific research, chemical industry, food, pesticide, medicine, biological industry, etc.
Is it guaranteed? National three year warranty
Telephone: 17317246351
Detail

1 introduction of equipment:

The device is specially aimed at organic solvents, and the inert gas medium formed by circulating nitrogen is used to replace the usual air medium for spray drying. In addition to recycling products, organic solvents can be recovered. In view of the characteristics of low flash point or micro toxicity of organic solvents, it is flammable and explosive. The closed cycle spray system is specially designed.


1.1 explosion-proof system:

The first layer of nitrogen explosion-proof: according to the nature of nitrogen inert gas, the whole pipeline uses nitrogen circulation, the oxygen content below 3% can run normally.

Second layers of industrial explosion-proof, pressure is higher than 3000pa, safety valve opens, pressure relief, detailed industrial control process, please consult factory Technology Engineer.

The third layer explosion-proof flameproof. When the pressure in the drying tower system does not rise normally, the explosion-proof piece on the top of the tower opens and detonating automatically.

Fourth layers of explosion-proof machine, with ventilation system (optional), suitable for harmful gases.


1.2 product features:

It can prevent oxidation, avoid danger and improve quality.

Easy to achieve aseptic dust free.

It can be used to recover the solvent in the liquid.

Improve the preservation of aromatic components.

It is capable of drying or cooling granulation of flammable liquid.

It can dry very high heat sensitive material.

It can achieve low public hazards and no public hazards.

It can save the deodorizer.

It can be dried at low temperature below 100 degrees C.


1.3 applicable products:

Non oxidizing ceramics, superhard alloys and high efficiency battery materials.

Seasoning, healthy food.

Medical products, vitamins, organic drugs.

Synthetic resin wax


2 overall structure (based on the final design of Joe maple)

The equipment mainly consists of feeding system, heating system, atomization system, spray drying system, inert gas circulation system, product recovery system and condensing system.


2.1 feed system

It includes: batching tank, solvent tank, feeding peristaltic pump, feed pipeline, atomizer. First, put the good slurry into the mixing tank. After stirring even in the drive of the creeping pump, the slurry reaches the atomizer through the pipe valve. The atomizer needs to be equipped with Shanghai Joe Maple special explosion-proof atomizer nozzle and the nozzle life warranty is used. A year。


Two.2 heating system

The heating system consists of a nitrogen electric heating system. The closed heating element heat the dry medium (nitrogen) directly in the pipe and pass a set of pressure control control device to control the temperature accuracy within 2.


2.ThreeDry pagoda

The drying tower contains the tower, the explosion proof lamp, the gas distributor, the temperature control equipment, the pressure relief device, the inlet pipe, the air outlet pipe, the oxygen content measuring sensor and so on. The filter device should be set up inside the inlet pipe. The slurry after hot air is heated and the slurry is evaporating and drying to the powder. The closed loop pipe is removed from the discharge port at the bottom and the gas is exhausted from the exhaust pipe.


2.4 product recovery system

The gas from the bottom of the drying tower contains powder and organic solvent steam, and the filter device is used to recover the gas. The powder is separated from the organic solvent gas, the powder is recycled, and the organic gas is recycled into the condenser to be recycled and reused.


2.5 gas circulation system

The gas cycle is completed by a set of circulating fan, the drying medium self circulating fan output, flow through the condensing device, electric heater, drying tower, cyclone separator or bag filter, temperature resistant and efficient filter, and return to recycle fan to repeat use, that is to form a gas circulation system.


2.6 condensing system

The condensing system is composed of a refrigeration unit, a condenser, a refrigerant circulating pump, a filter, a heat exchanger and a connecting pipeline. The "wet" gas (including vaporized organic solvent steam) discharged from the dust collector enters the condenser, and the gas is cooled by the condenser to return to the gas circulation system, and the organic solvent steam is automatically discharged into the solvent tank through the liquid level controller at the bottom of the condenser after condensing recovery.


2.7 atomization system

The system adopts hard contact with mechanical structure, without any gasket and no leakage. Unlike ordinary electric centrifugal sprinklers, the overheated corrosion steam has long contact with the electric wire of the electric nozzle and corrodes the wires, resulting in the softening and softening of the plastic cortices on the surface of the wire, thus forming a short circuit.


3. the advantages of the equipment:
3.1 adopt the QFN-BLG-ES-VER2018-1A atomization system of Qiao Feng. The system adopts hard contact with mechanical structure, without any gasket and no leakage. Different from the ordinary electric centrifugal nozzle, corrosion of superheated steam under pressure under the condition of long-term exposure to electric wires and wire head, corrosion, corrosion of the wire surface cortex cause plastic softening and shedding, thereby forming a short circuit.
3.2 the ultrafine powder can be achieved in the range of 1-8 microns, which is suitable for the preparation of battery materials.


4. list of easy parts and spare parts

Serial number

Name

Number

Remarks

One

rupture disc

One

/

Two

Explosion-proof nebulizer

One

Mark one, for 2 months without cash.

Three

Silica gel gasket

Twenty

/

Four

Hoop

10 sets

/

Five

Filter element

The 2

2

Six

Material collecting bottle

The 2

/

Seven

Peristaltic pump tube

One

Anticorrosive

5.Equipment configuration and main parameters

Serial number

parts

brand

Model

Number

Remarks

One

Touch screen

/

/

One

See device parameters

Two

Fan

Customized

Customized

One

/

Three

condenser

Joe Maple custom

/

One

/

Four

Heat exchanger

Joe Maple custom

/

One

/

Five

On-line oxygen detection system

Customized

Customized

One

/

Six

cyclone separator

Qiao Feng, Shanghai

Matching

One

/

Seven

Filter

Qiao Feng, Shanghai

Matching

One

Material, fremus

Eight

heater

Qiao Feng, Shanghai

Matching

One

/

Nine

sensor

Famous Shanghai

wzp - 241

Three

/

Ten

Vent valve

ZHENGLI

/

One

/

Eleven

Safety valve

E/P

surface 1000rdi131

One

/

Twelve

Pressure relief valve

ZHENGLI

AT100 D A F07/10-22

One

/

Thirteen

Pressure gauge

Kunlun coast

jyb - kg - pagzg

Two

/

Fifteen

Differential pressure meter

Kunlun coast

jyb - 3151

One

/

Sixteen

Glass rotor flowmeter

Changzhou double ring

dk800 - 6 dk800 - 6f

One

Customized

Seventeen

Sealed butterfly valve

Qiao Feng, Shanghai

Tailor made

One

/

Eighteen

Gas-liquid separator

Qiao Feng, Shanghai

qfn - pt - 0.5

One

/

Nineteen

Cooling unit

Joe Maple custom

Customized

One

/

Twenty

Explosion proof atomization system

Qiao Feng, Shanghai

/

One

See device parameters

Twenty-one

PLC, module quantity, frequency converter

/

/

/

See device parameters

Twenty-five

Taida thermostat

Taida

dtc1000r

One

/

Twenty-six

DTC2000C

Two

/

Twenty-seven

dtc2000r

One

/

Twenty-eight

Touch screen and PLC communication line

Taida

/

One

See device parameters

Twenty-nine

Switching Mode Power Supply

The Ming and Wei

/

One

See device parameters

Thirty

Frequency converter

/

/

One

See device parameters

Thirty-one

Miniature circuit breaker

/



Some

See device parameters

Thirty-nine

Contactor

/

/

Four

See device parameters

Forty

Thermal relay

/

/

Four

See device parameters

Forty-one

Small relay

chint

JZX-22F (D) /2Z

Twenty-nine

With a light, 220VAC

Forty-two

JZX-22F (D) /4Z

One

Forty-three

Small relay base

chint

czy08a - e

Twenty-nine

/

Forty-four

czy14a - e

One

/

Forty-five

Solid state relay

/

/

One

See device parameters

Forty-six

Solid state relay radiator

Meg

Three-phase

One

尺寸80×80×115mm

Forty-seven

Axial fan

/

Eight thousand and twenty-five

One

220vac

Forty-eight

Huatong isolating transformer

Huatong

BK-200 (copper coil)

One

Input-output 220:220VAC

Forty-nine

CHINT voltmeter

chint

6l2

One

450v

Fifty

CHINT ammeter

chint

Three

50 / 5

Fifty-one

CHINT current transformer

chint

bh-0.66 / 30i

Three

Fifty-two

Explosion-proof thermal resistance

/

wzp - 241

Four

Nan Dai, PT100

Fifty-three

CHINT rush button

chint

np - bs542

One

/

Fifty-four

CHINT indicator light

chint

nd16 - 22ds / 4

One

Red, 220VAC

Fifty-five

CHINT flashing buzzer

chint

nd16 - 22fs

One

220vac

Fifty-six

CHINT modularized three sockets

chint

ac30 - 108

One

/

Fifty-seven

Double connection terminal

/

SUK-16N

One

/

Fifty-eight

SUK-16PE

One

/

Fifty-nine

SUK-6N

Twelve

/

Sixty

SUK-6PE

Four

/

Sixty-one

SUK-5N

Eighteen

/

Sixty-two

SUK-5PE

Six

/

Sixty-three

SUK-2.5B

Eighty

/

Sixty-four

SUK-2.5PE

Four

/

Sixty-five

Terminal fixer

/



Thirty

/

Sixty-six

baffle

/

UK-2.5B use

Eight

/

Sixty-seven

Short connection bar

/

/

Two

/

Sixty-eight

Clasp guide rail

/

/

Eight

/

Sixty-nine

wire

/

/

1 batches

/

Seventy

Number tube, ribbon, sticker and other consumables

/

/

1 batches

/

Seventy-one

Oversea ray groove

/

Six thousand and fifty

12 meters

Bottom hole

Seventy-two

Three thousand five hundred and twenty-five

6 meters

/

Seventy-three

Cold press terminal, screw, belt, fan

/

/

1 batches

/

Seventy-four

miscellaneous

/

/

One

/

Seventy-five

USB drive

/

/

One

/

Seventy-six

Pressure relay switch

/

/

One

/

Seventy-seven

Sealing element

Some

/

/

Silicone rubber

Seventy-eight

Fast loading clamp

Some





sus304

Alcohol, acetone


Closed loop cryogenic spray dryer

qfn - bl - d1

qfn d3 - bl

qfn - bl - d5

Ethanol evaporation

0.8Kg/h

3Kg/h

5Kg/h

Minimum feed volume

50ml

80ml

100ml

Atomization structure

Atomization system (QFN-NZY1VER2018-1A)

Electronic control system

Qiao Feng closed cycle atomization system (QFN-BLD-ES-VER2018-1A)

Maximum inlet temperature (centigrade)

One hundred and forty

The diameter of the drying chamber (mm)

¢300

¢800

¢1200

Height of dry tower (mm)

¢600

¢1200

¢1500

Diameter of explosion-proof sheet (mm)

Sixty-five

Sixty-five

One hundred and eight

Heater capacity

2kw

6kw

12kw

Air blower [power (kw), air volume (m /h)]

[1.5,250]

[2.2,300]

[2.2,300]

Compressor [power (kw), air volume (L /min)]

[0.58,108]

[0.58,108]

[0.58,108]

Water chilling unit

50-60Hz (built-in cryogenic cooling cycle pump)

Standard of main electrical accessories (including PLC, analog module, touch screen) (optional)

Control module (standard), delta control module, SIEMENS control module, Germany.
On the other hand

Standard of electrical auxiliary accessories selection (including Contactors) (optional)

CHINT (standard): Deli, Schneider.

Contact with the material (optional)

?sus304 (標準)     □sus316   □其他 _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Exhaust reutilization, energy saving over 30% (optional)

Assembly (standard) / assembly

Atomizing nozzle (optional, diamond coated)

(SUS304) (standard) SUS316 (standard) silicon carbide (standard) diamond

Equipment warranty

1 years (standard, above must be charged a certain maintenance cost) for 2 years, 3 years.

Electric power (installed capacity)

4kw

12kw

30kw

Pulse bag filter

Polytetrafluoroethylene film mulching material

2

4

8

Reference to shape size (mm) (L x W x H)

1400×1000×1600

1800×1200×1800

2100×1200×1800

Installation weight (Reference)

500 pounds

450kg

1000kg

Power supply

380V/-3: it can be customized according to different national standards.

Note 1: for evaporation of ethanol with inlet temperature of 140 2:, for larger evaporation capacity, please inquire online or call our company.
