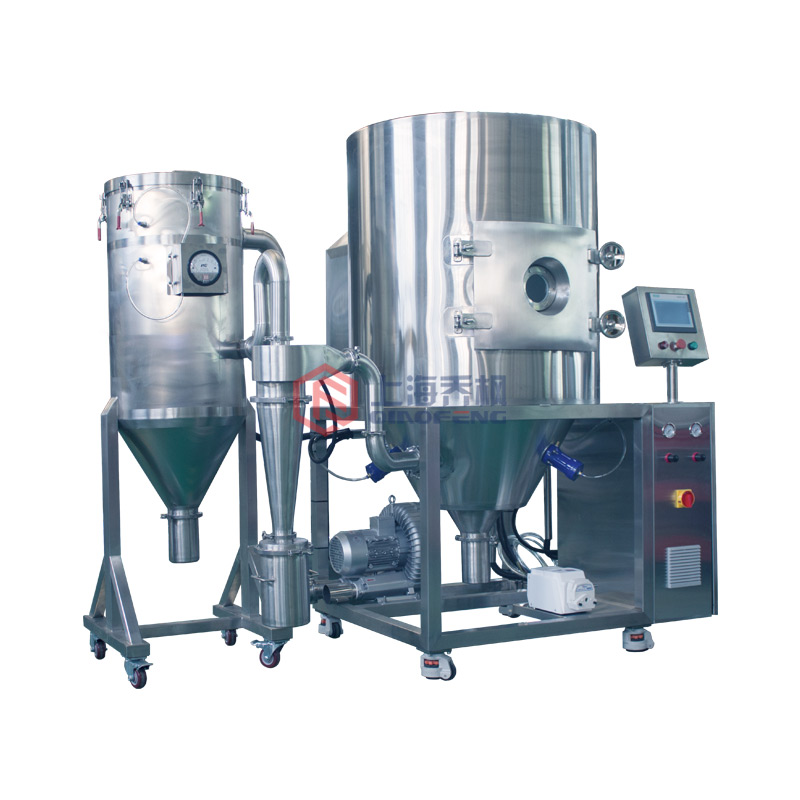

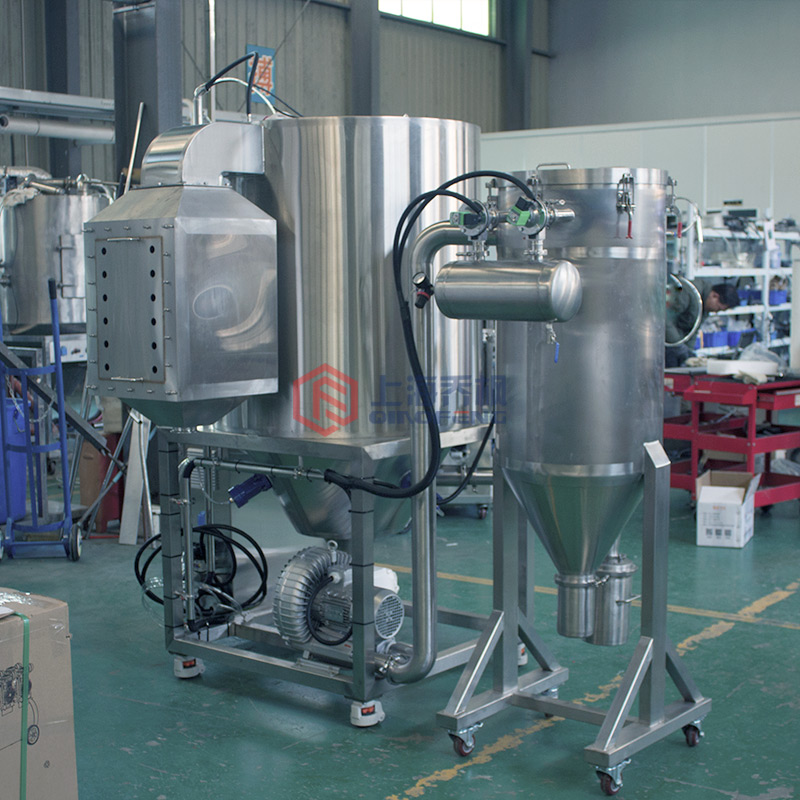

Centrifugal fluid spray drier

Device name:	Centrifugal two fluid spray dryer
Equipment type:	qfn down to - 5 -
Equipment specifications:	5Kg/h (support customized)
Test machine:	Support test making experiment
Scope of application:	Powdered and granular solid products are produced in solution, emulsion, suspension and paste liquid raw materials.
Application scenario:	Scientific research, chemical industry, food, pesticide, medicine, biological industry, etc.
Is it guaranteed?	National three year warranty
Telephone:	17317246351

Buy online

Detail

1. product features:

Airflow atomizer, centrifugal atomizer
Color large touch screen operation, automatic control and manual control combined, Chinese and English panels, parameter LCD display.
Real time control of PID thermostat control technology, accurate temperature control, heating temperature control accuracy of + 1 degrees Celsius.
The drying speed is fast, generally only 1-1.5 seconds, with instantaneous drying characteristics.
The drying process is completed in a short time, which is suitable for drying the heat sensitive material and keeping the original characteristics of the material.
The production process is simplified, intelligent operation touch screen control program is convenient, suitable for continuous production control experiment, please contact our staff of customized production type spray dryer.
The product has good dispersibility, fluidity and solubility.

2. equipment advantages:

The centrifugal atomizing spray head has a large fog distance and is easy to stick to the wall or to collide with the wall.
Airflow atomization spray, small angle, no wall;
The type selection of large production in the later period has important reference significance.
It is possible to study the different atomization modes of the same material, which is conducive to the development of new features of new materials and materials.
Because the atomization mechanism of the two atomizing sprinklers is different, the shape and structure of the material are quite different.
The particle size of the atomized spray nozzle is normal and steep, and the particles are relatively uniform.

3. two kinds of nebulization comparison:

category	centrifugal atomization	Two fluid atomization
Final powder morphology	The particle size is more uniform	Uniformity of particle size without centrifugal atomization
For certain materials, such as resin	Unsuited	Fit
Adaptability range of material powder	Centrifugal atomization < two fluid atomization
Wall impingement	Easy to hit the wall	No wall
Pagoda	Easy product	Non product
Adjustment range of particle size	Narrower (25-70 micron)	The adjustment range of particle size is larger (1-120 microns)
Is it convenient to insert and maintain	Disassembly, cleaning and maintenance are more complicated and require professional maintenance.	Disassembly, cleaning and maintenance are very simple, without professional maintenance.
Diversity	Single	Multiple choice space

Difference of two fluid atomization system

category	QFN and nzi1ver2018 - 1A	QFN-CX-NZY8VER2018-1A	QFN-CX-NZY1VER2018-1A
particle size	(25-100 microns)	(1-10 microns)	(1-10 microns)
Tower height	Long type	Wide type	Long type
particle size distribution	QFN - CX - nzy8ver2018 - 1 > qfn - CX - nzy1ver2018 - 1 > QFN and nzi1ver2018 - 1A

Equipment configuration

system	number	parts	brand	Model	Number	Remarks
electric control system Series	One	Electronic control system of QFN-LE series atomizing dryer	Maple Maple	/	1 sets	See device parameters
	Two	Switching Mode Power Supply	The Ming and Wei	you - 100 - 24	The 1	/
	Three	Air switch	chint	DZ47 series	Some	/
	Four	Small relay	chint	JZX-22F (D) /2Z	Some	/
	Four	Small relay	chint	JZX-22F (D) /4Z	Some	/
	Five	Solid state relay	Meg	/	1 sets	/
	Six	Frequency converter	/	/	1 sets	See device parameters
	Seven	Digital controller	Taida	DTC-1000 series	Some	See device parameters
	Eight	Power switch			The 1
	Nine	Indicator light	chint	nd16 - 22ds / 4	The 1	Red, 220VAC
	Ten	sensor	Famous Shanghai	wzp - 241	3 roots	/
	Eleven	Terminal terminal	/	/	Some	/
	Twelve	Guide	/	/	Some	/
	Thirteen	Groove	/	/	Some	Bottom hole
	Fourteen	wire	Sails	/	/	/
	Fifteen	Electric box	Maple Maple	Customized	The 1	sus304
transport material system Series	One	Peristaltic pump	Hui Yu	yz15 13a	1 sets	/
transport material system Series	Two	Feed pipe	/		/	/
Fog turn system Series	One	Atomization system	Maple Maple	Customized	1 sets	See device parameters
	Two	Pressure gauge	AirTAC	0-1MPA		/
	Three	Circulating pump	/	/	One	/
	Three	Air compressor	Dolphin	0-0.8MPA	1 sets	/
dry dryness system Series	One	Dry pagoda	Maple Maple	/	The 1	See device parameters
dry dryness system Series	Two	Hot air distributor and volute (matching of atomization system)	Maple Maple	Customized	The 1	Three hundred and four
yield product return collect system Series	One	cyclone	Maple Maple	Customized	One	Three hundred and four
	Two	Dust collector (optional)	Maple Maple	Customized	/	See device parameters
	Three	Collecting bucket	Maple Maple	Customized	Three	Three hundred and four
	Four	Feed valve	Warm letter	φ63 / 108mm	Three	Health level 304
Hot air circulation system	One	Fan	/	/	1 sets	See device parameters
Hot air circulation system	Two	heater	Maple Maple	Customized		See device parameters

Equipment parameters

Centrifugal two fluid spray dryer	qfn down to - 5 -	qfn - down - 10	qfn down. - 15 -
Water evaporation	5Kg/h	10Kg/h	15Kg/h
Minimum feed volume	80ml	120ml	150ml
The diameter of the drying chamber (mm)	￠800	￠1000	￠1200
Height of dry tower (mm)	￠800	￠1200	￠1500
Atomization structure	Atomization system (QFN-E-NZI1VER2018-1A) (compressed air: 1-5bar) Centrifugal atomizer (QFN-L-RODVER2018-1A) (speed: 32000r/min (adjustable))
Atomization structure
Electronic control system	Qiao Feng centrifugal two fluid atomization system (QFN-LE-ES-VER2018-1A)
Maximum inlet temperature (centigrade)	Two hundred and sixty
Standard of main electrical accessories (including PLC, analog module, touch screen) (optional)	Control module (standard), delta control module, SIEMENS control module, Germany. On the other hand
Standard of electrical auxiliary accessories selection (including Contactors) (optional)	CHINT (standard): Deli, Schneider.
Contact with the material (optional)	?sus304 (標準) □sus316 □其他 _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Exhaust reutilization, energy saving over 30% (optional)	Assembly (standard) / assembly
Atomizing nozzle (using diamond coating)	(SUS304) (standard) SUS316 (standard) silicon carbide (standard) diamond
Equipment warranty	1 years (standard, above must be charged a certain maintenance cost) for 2 years, 3 years.
Heater capacity	15kw	25kw	30kw
Air blower [power (kw), air volume (m /min)]	nothing	[0.25,9.5]	[0.25,9.5]
Air blower [power (kw), air volume (m /h)]	[1.5，250]	[2.2，300]	[2.2，1410]
Compressor [power (kw), air volume (L /min)]	[0.58，108]	[1.5，250]	[1.5，250]
Electric power (installed capacity)	18kw	30kw	40kw
Thermal insulation material	50mm glass fiber insulated cotton	50mm glass fiber insulated cotton	50mm glass fiber insulated cotton
Pulse bag dust collector (optional)	4	9	20
Shape size (mm) (L x W x H)	1600×1400×1800	2200×1600×2200	2600×1200×2500
Installation weight (Reference)	300kg	600kg	1000kg

Power supply

380V/-3: it can be customized according to different national standards.

Note 1: water evaporation at inlet temperature of 250 C.
2: for more evaporation equipment, please inquire online or call our company.
